UL20604 Chemical Resistant FEP Insulated Cable

Product Description

Style Number:UL20604Jacket Material:FEP
Rated Temperature:200 deg CRated Voltage:300V
Average Jacket Thickness:11 milsMinimum Jacket Thickness:9 mils


UL20604 Chemical Resistant FEP Insulated Cable


Feature: Chemical Resistant

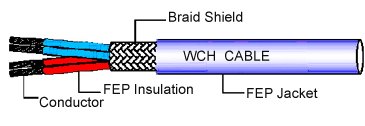

High Purity Copper Wire Conductor

Conductor 30 AWG - 10 AWG

Tinned annealed stranded or solid copper conductor, or Silver plated copper, Nickel plated copper

FEP insulation

Tinned copper wire braid

FEP jacket.

Rated temperature: 200℃, rated voltage: 300volts.

Uniform thickness of wire to ensure easy stripping and cutting.

Passes UL VW-1 & CUL FT1 vertical flame test.



UL Style / CUL Type

Cores

Conductor

Insulation Thickness

Braid Shield

Jacket Thickness

Overall Diameter

Conductor   Resistance

AWG

No./mm

mm

No./mm

mm

mm

Ω/KM

UL20604
  CUL AWM
  I A/B
  (Stranded)

2

22

19/0.15

0.33

16/6/0.12

0.30

4.0-5.0

59.4

20

19/0.19

0.33

16/6/0.12

0.30

4.5-5.5

36.7

18

19/0.235

0.33

16/6/0.12

0.30

5.0-6.0

23.2

3

22

19/0.15

0.33

16/6/0.12

0.30

4.0-5.0

59.4

20

19/0.19

0.33

16/6/0.12

0.30

4.5-5.5

36.7

18

19/0.235

0.33

16/7/0.12

0.30

5.0-6.0

23.2

4

22

19/0.15

0.33

16/7/0.12

0.30

4.5-6.0

59.4

20

19/0.19

0.33

16/7/0.12

0.30

5.0-6.5

36.7

18

19/0.235

0.33

24/6/0.12

0.30

5.3-7.0

23.2

5

22

19/0.15

0.33

16/7/0.12

0.30

5.0-6.5

59.4

20

19/0.19

0.33

16/7/0.12

0.30

5.5-7.0

36.7

18

19/0.235

0.33

24/6/0.12

0.30

6.0-7.5

23.2

6

22

19/0.15

0.33

16/8/0.12

0.30

5.5-7.0

59.4

20

19/0.19

0.33

16/8/0.12

0.30

6.0-7.5

36.7

18

19/0.235

0.33

24/8/0.12

0.30

6.5-8.0

23.2
